VESTA-1000+

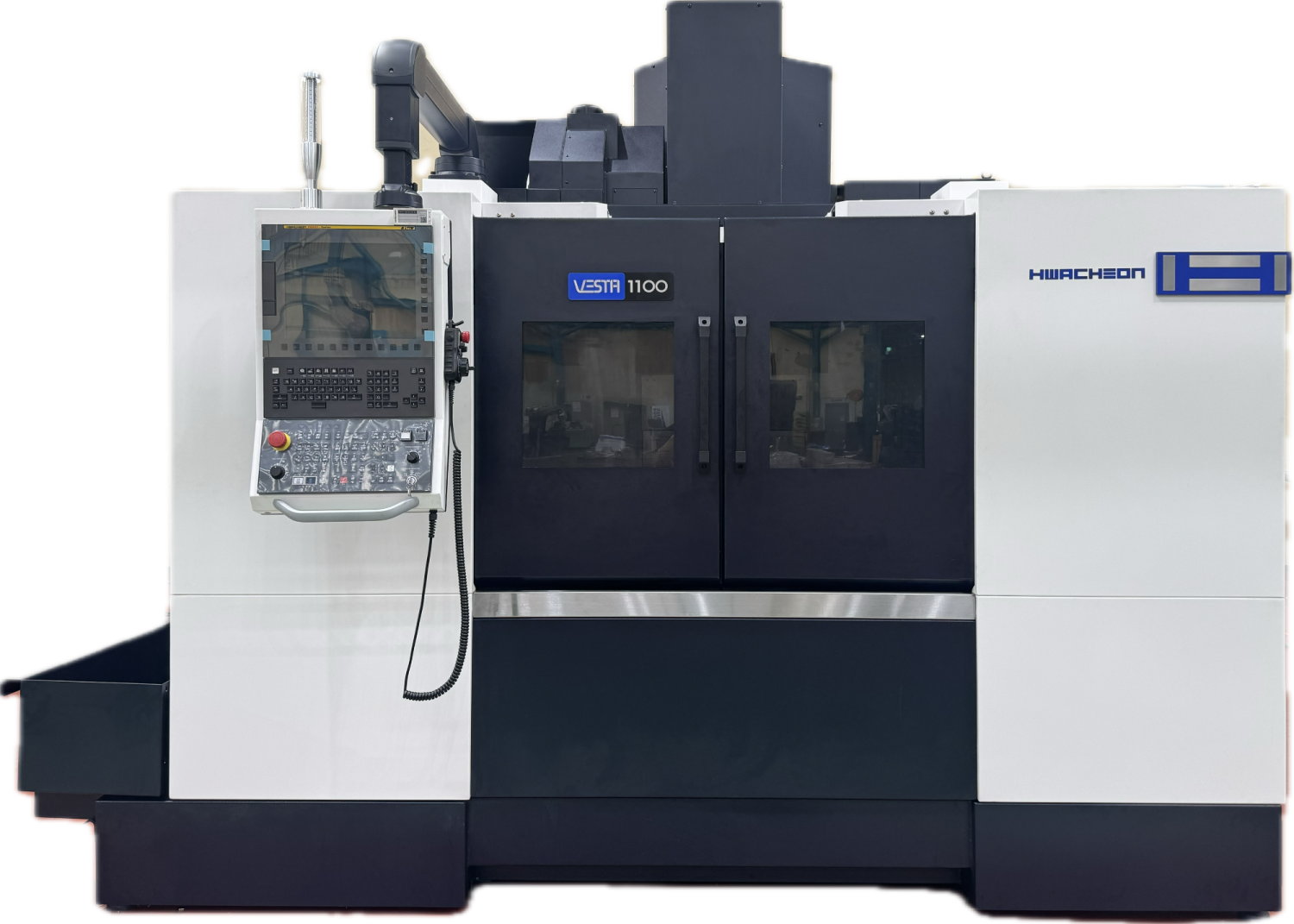

VESTA-1000+provides high efficiency and satisfactory result with its highly-strengthened productivity and better user friendliness
It is equipped with Hwacheon’s proprietary technologies such as productivity enhancement software (HECC, HTLD and OPTIMA) and precision enhancement software (HTDC and HAI) and provides differentiated quality different from existing machining center for parts.
Installation area size has been minimized relative to the size of other tools of the same class for more efficient usage of space in customer’s factory
Main features
Enhanced Machining Performance and Productivity
Improved table utilization
4 ea of 6” vices can be set up
Enhanced tool change time and chip to chip time
Cycle time 15% Improvement
Hwacheon’s proprietary software
Enhanced User Convenience
Two lightweight doors at the front reduce fatigue
Pendant arm type operator panel
Lowered table height : 950 mm
The tempered safety glass ensures machining visibility
Easy Maintenance
Back & Side type chip conveyor
STD: Side chip bucket
OPT : Side type lift-up chip convey
Back type lift-up chip conveyor
Wide side door for user convenience
Specifications
|
Item |
Unit |
VESTA-1000+ |
|
Stroke (X / Y / Z) |
mm |
1,000 / 550 / 500 |
|
Rapid Speed (X / Y / Z) |
m/min |
36 / 36 / 30 |
|
Table Size (W x L) |
mm |
1,100 x 502 |
|
Table Loading Capacity |
kgf |
700 |
|
Max. Spindle Speed |
rpm |
12,000 (Opt: 15,000) |
|
Spindle Motor |
kW |
18.5 / 11 |
|
Type of Tool Shank |
- |
BT-40 (Opt: BBT-40) |
|
Tool Storage Capacity |
ea |
30 |
|
Floor Space (Length x Width) |
mm |
2,850 x 2,420 |
|
Weight |
kgf |
5,040 |
|
NC Controller |
Fanuc 0i Plus |
|
Mounting software
Hwacheon Tool Load Detect System
"Detect and diagnose the most minute of tool-end point movement"
HTLD constantly monitors the tool wear to prevent accidents, which may occur from a damaged tool and help to stop tool wear from deteriorating the workpiece.
(The load is measured every 8 msec to ensure accuracy.)
Hwacheon High Efficiency Contour Control System
"Roughing quickly, finishing is precisely"
HECC offers an easy to use programming interface for different workpieces and different processing modes.
The system provides a precise,custom contour control for the selected workpiece, while prolonging the life of the machine and decreasing process time. The customizable display provides real-time monitoring and quick access.
Cutting Feed Optimization System
"Maximize your productivity with intelligent system"
OPTIMA utilizes an adaptive control method to regulate the feed rate in real time, to sustain the cutting load during a machining process. As a result the tools are less prone to damage and the machining time is optimized.
Hwacheon Spindle Displacement Control System
"Real-time correction for the displacement in the spindle"
When the spindle rotates at high speed, the centrifugal force drives the taper to expand, causing errors in Z axis. HSDC constantly monitors the temperature at each spindle region and makes optimal prediction for thermal displacement.
The system then makes necessary adjustments and eff ectively minimizing thermal displacement.
Hwacheon Frame Displacement Control System
“System for maintaining processing accuracy for a long period of machining"
HFDC is equipped with highly sensitive thermal sensors in the casting region where thermal activity is suspected; monitoring and correcting displacement.
Hwacheon Thermal Displacement Control System
"Hwacheon Spindle Displacement Control System
+ Hwacheon Frame Displacement Control System"
HTDC integrates the Hwacheon Spindle Displacement Control system and the Frame Displacement Control System.
